REAR BRAKES - CONTINUEDTM 5380-25420-2
ACTION
LOCATION
ITEM
REMARKS

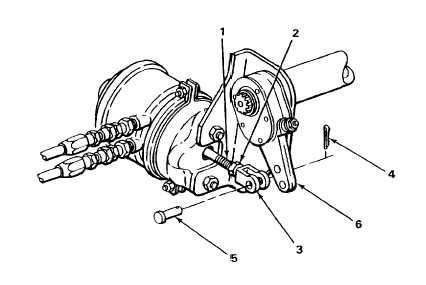

ADJUSTMENT - CONTINUED
70.
Push rod (1)
Nut (2) and
Using 15/16-inch open-end wrench,
clevis (3)
loosen and move nut away from clevis.
71.
Clevis (3)
Cotter pin (4) and
a.
Using 8-inch roundnose pliers, take out
yoke pin (5)
cotter pin.
b.
Take out yoke pin.
72.
Push rod (1)
Clevis (3)
Turn to adjust to position needed.
73.
Clevis (3)
Nut (2)
Turn toward clevis and tighten using 15116-
inch open-end wrench.
74.
Slack adjuster (6)
Clevis (3), cotter
a.
Aline lower hole in slack adjuster with
pin (4), and yoke
clevis.
pin (5)
b.
Put in yoke pin.
c.
Put cotter pin through yoke pin.
d.
Bend back ends of cotter pin using 8-
inch roundnose pliers.
e.
Perform step 69 again.
NOTE
FOLLOW-ON MAINTENANCE: Install rear hub and brakedrum assembly
(page 1188).
TASK ENDS HERE
